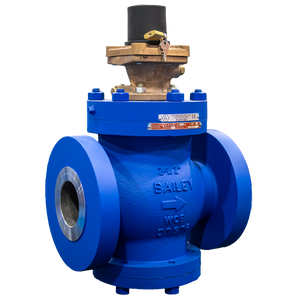

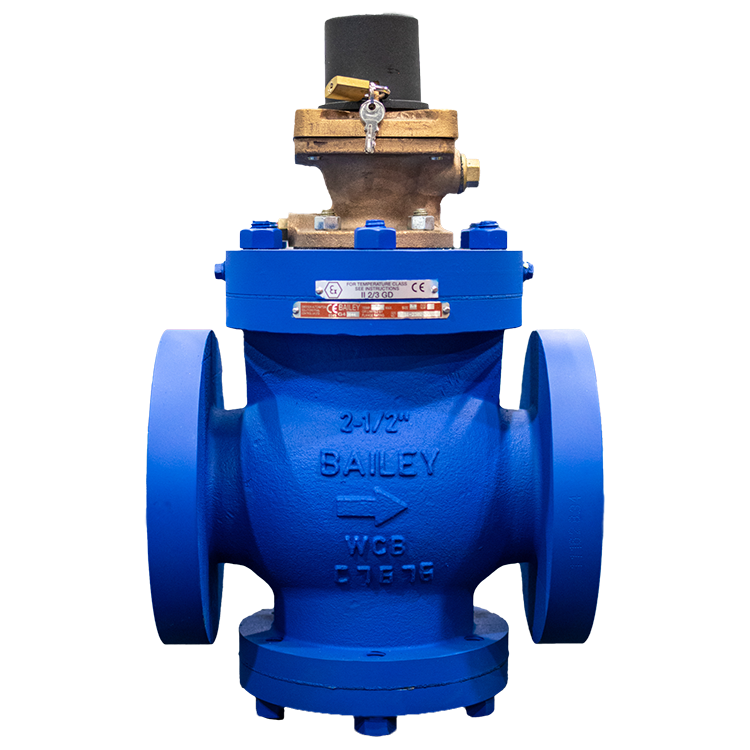

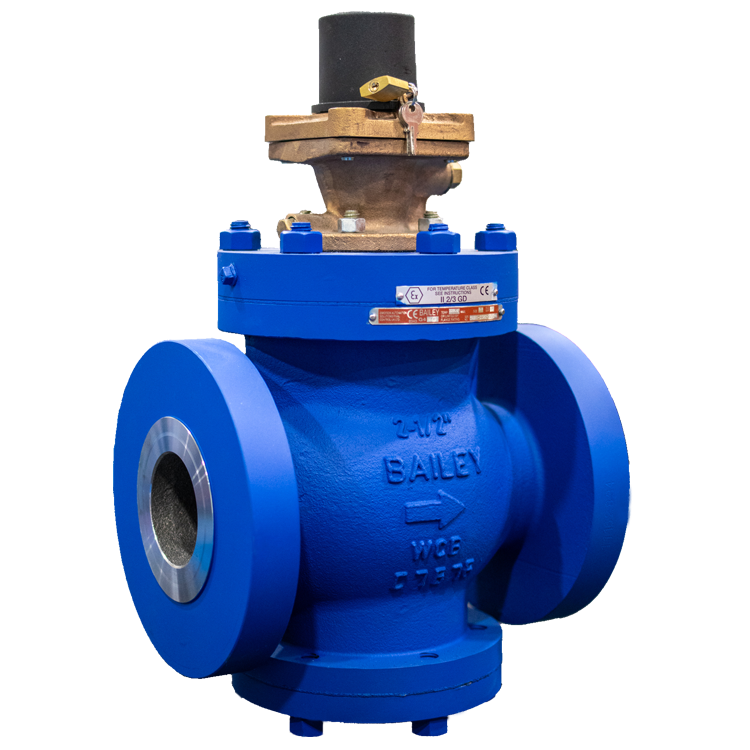

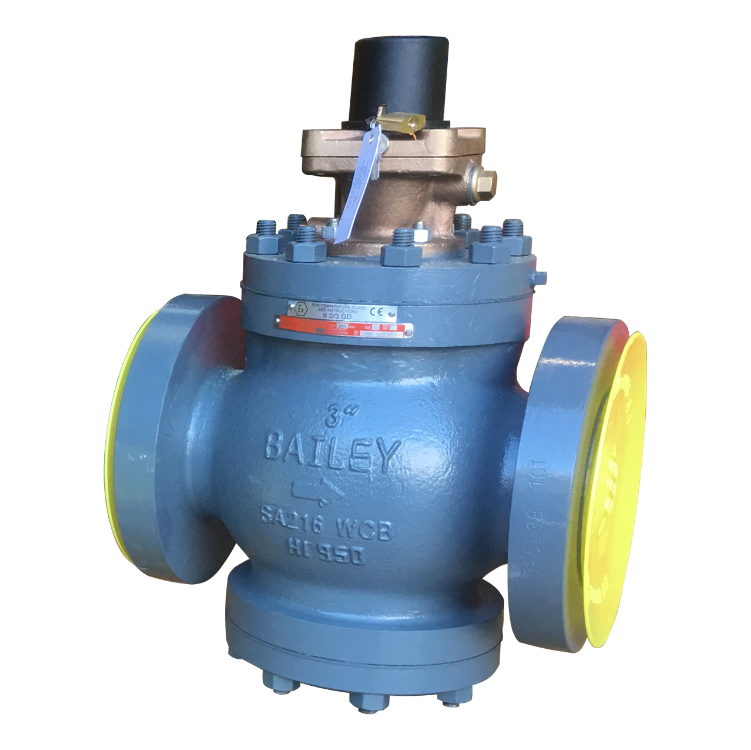

Bailey Birkett G4 Pressure Reducing Valve - Fig 2045

  • £2,567.00

    DN65, DN80 and DN100 flanged valves on stock. This product is despatched the following working day.

    The G4 piloted operated pressure reducing valve provides extremely accurate levels of pressure regulation for steam, air, and industrial gas applications. The highly sensitive pilot valve provides a constant outlet pressure, irrespective of erratic inlet pressure or system demand.

    Model: 2045
    Sizes: DN65, DN80 & DN100 (2.1/2", 3" & 4")
    Connections: Flanged (Drilled to your requirements)
    Materials: Carbon steel body, Bronze Pilot top, Stainless steel trim
    Medium: Steam
    Inlet Pressure: 25 Barg Max to 225 degC / 17 Barg Max to 260 degC
    Outlet Pressure Range: 21 Barg Max to 225 degC / 16 Barg Max to 260 degC
    Temperature: -20 to 260 degC
    Notes: This valve is only suitable for steam
