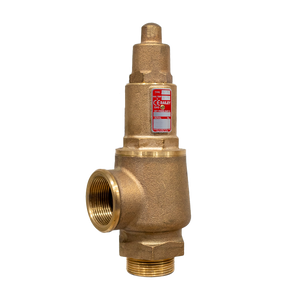

Bailey 480 Cartridge Assembly Relief Valve

Bailey 480 Cartridge Assembly Relief Valve



This is a stock item. Order by 5pm for Sameday despatch.

This spring operated liquid relief valve has a cartridge type assembly which can be withdrawn from the body without disturbing the spring setting and hence relieving pressure. This allows the seating surfaces to be cleaned without the need to reset the valve. Typically for use on positive displacement pumps, for relief or bypass duties. The spring cartridge assembly can be supplied separately for use as an integral pump bypass relief valve. The spindle is fitted with an ‘O’ ring to protect the spring particularly on corrosive duties.

Sizes: 3/4", 1", 1.1/2", 2"
Connections: BSP Male Inlet x BSP Female Outlet
Materials: Bronze body
Disc: Bronze
Joints & Seals: Nitrile spindle O ring
Medium: Liquids
Set Pressure: 0.35 to 24 Barg
Temperature: -20 to +120 degC Max
Design: Notes:
