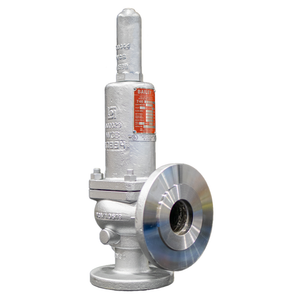

Bailey 746 Safety Relief Valve (Dome Top)

Bailey 746 Safety Relief Valve (Dome Top)

  • £915.45


    This is a stock item. This product is despatched the following working day.

    The 746 Safety Relief Valve incorporates a freely pivoting disc, which ensures correct alignment with the nozzle. The combination of top guiding, unobstructed seat bore, and full lift capability ensures the highest possible discharge rate, thus maximum plant protection.

    The ‘conventional’ arrangement is suitable for applications where the built-up pressure will not exceed 5%. The conventional valve can also be used in systems where the superimposed back pressure is at a constant level (up to 80%).

    We will set and test the valve to your requirements, and provide a pressure test certificate confirming this, prior to despatch.

    Sizes: 1" x 1.1/2" to 4" x 6"
    Connections: Flanged
    Materials: Carbon Steel body, Stainless Steel trim
    Disc: Stainless Steel
    Medium: Gases, Steam
    Set Pressure: 0.35 to 40 Barg (Size dependant)
    Temperature: -29 to +232 degC
    Notes: Dome Top
