Bailey 716ESD Safety Relief Valve (EDPM disc with Dome Top – suitable for Water and Gas service (not Air))

  • £217.60


    This is a stock item. Order by 5pm for same day despatch.

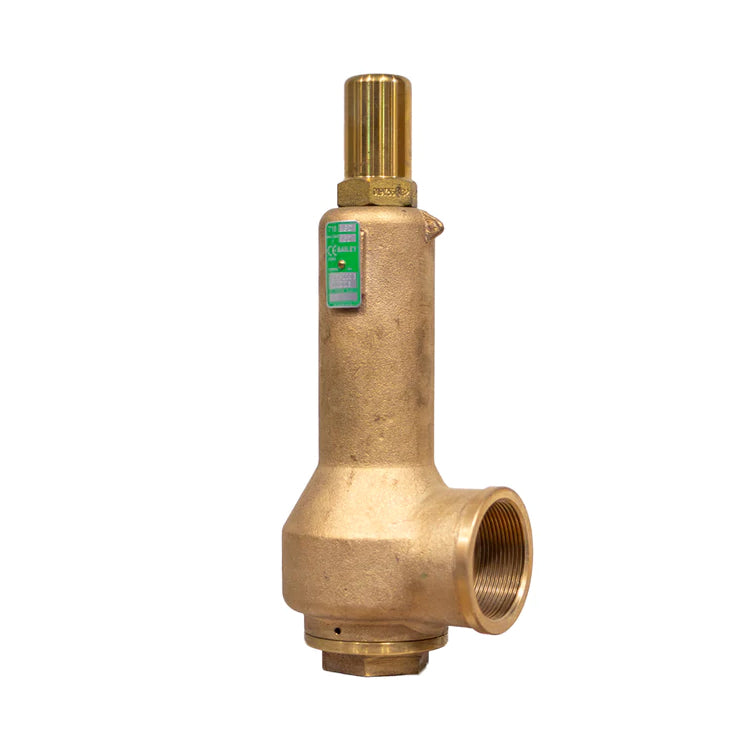

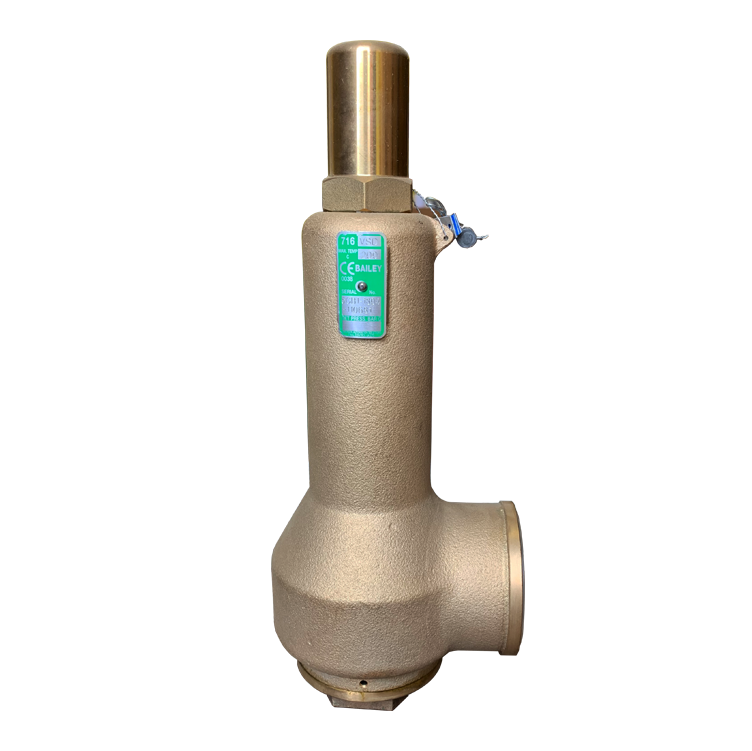

    The Kunkle Bailey 716 Safety Relief Valve is a safety relief valve that combines a top guided, unobstructed seat bore with full lift capability to provide maximum discharge. The Bailey 716 safety relief valve is certified to BS6759 pt 1, 2, 3 and is suitable for the protection of vessels, pipelines and equipment using hot or cold water, air or steam, among other gases and liquids.

    At Bailey Valves Online we will set and test the valve to your requirements, and provide a pressure test certificate confirming this, prior to despatch.

    Sizes: 1/2" x 3/4" to 2" x 3"
    Connections: BSP Female Inlet x BSP Female Outlet
    Materials: Bronze body, Chrome Vanadium spring
    Disc: EPDM
    Medium: Gases & Liquids i.e. Air, hot water
    Set Pressure: 0.35 to 32 Barg (depending upon the size)
    Temperature: -29 to +150 degC Max
    Notes: Also known as IMI Bailey Birkett valves, Kunkle Emerson valves and Safety Systems UK valves
