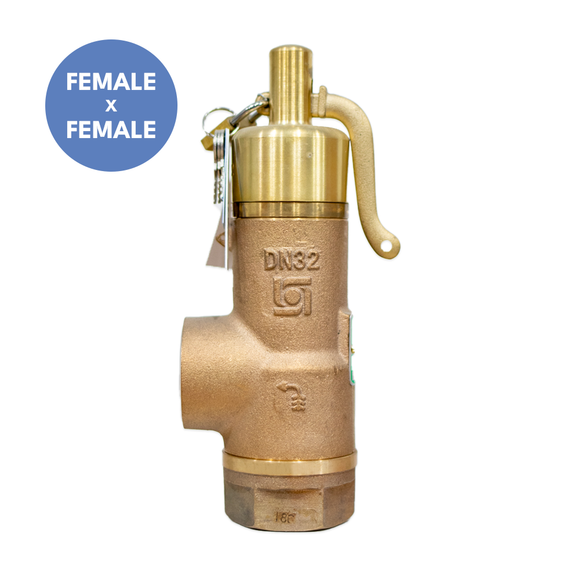

Bailey 707VL Safety Relief Valve Female x Female (AFLAS disk with Lever – suitable for Gas service)

Bailey 707VL Safety Relief Valve Female x Female (AFLAS disk with Lever – suitable for Gas service)



This is a stock item. Order by 5pm for same day despatch.

The Kunkle Bailey 707 safety relief valve encompasses a top guided design, combining an unobstructed seat bore with high lift capability. The 707 is certified to BS EN 4126 Part 1 (BS6759 pt 1:2:3) and is suitable for duty on air/gas, steam/hot water (above 212°F (100°C)) and process liquid (depending upon the model purchased). At Bailey Valves Online we will set and test the valve to your requirements, and provide a pressure test certificate confirming this, prior to despatch.

Sizes: 1/2" to 2"
Connections: BSP Female Inlet x BSP Female Outlet
Materials: Bronze body, Chrome Alloy spring
Disc: Aflas
Medium: Air, Vapours, Gases, Liquids and Steam
Set Pressure: 0.35 to 24 Barg
Temperature: -20 to +200 degC
Notes: Also known as IMI Bailey Birkett valves, Kunkle Emerson valves and Safety Systems UK valves
